Gantry Stage

PL Optics provides professional gantry systems for coupling applications, available in both manual and motorized types. This product series offers precise adjustment, high-magnification optical zoom, and high-definition display, making it an ideal choice for precise fiber-to-waveguide coupling.

产品介绍

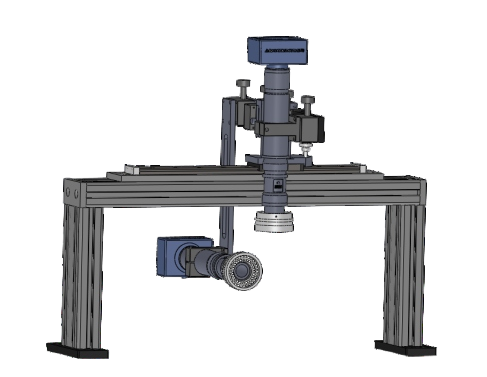

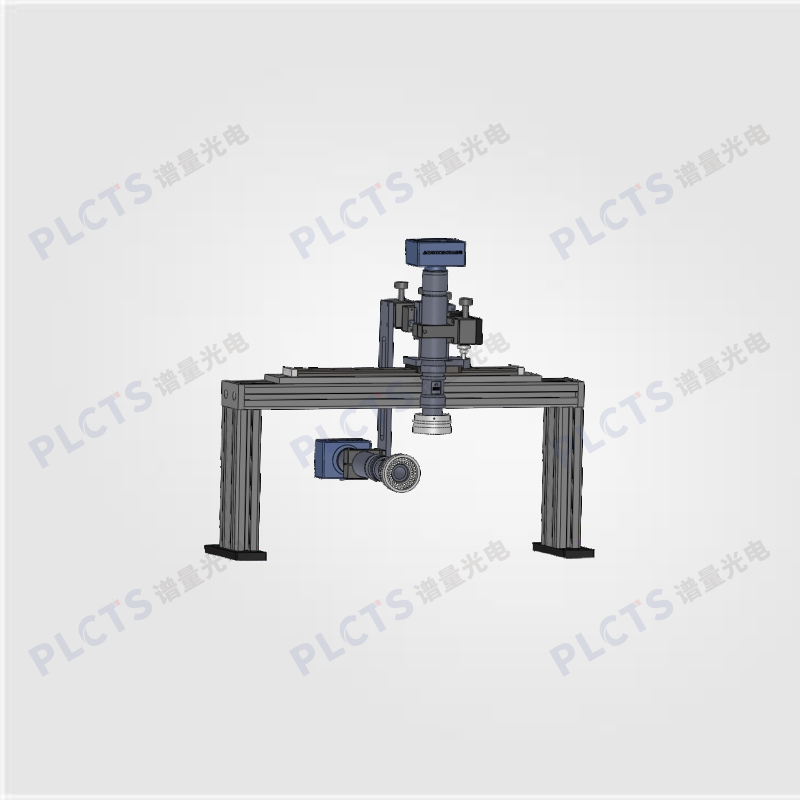

Manual Gantry System

Manual Gantry System

Manual Gantry System

Key Features:
  • Precise focal length adjustment, working distance: 86 mm
  • 3D adjustment, travel range: 40 mm, compatible with adapters, plates, and lens holders
  • Optical magnification: 0.7–4.5×; Max electronic magnification: 340×; 1:7 zoom
  • Length: 500 mm, long-travel guide rail: 150–250 mm with locking mechanism, working height: 130 mm
  • 8MP HDMI camera, C-mount, with crosshair & ring light, supporting measurement, photo, video, and drawing
  • 4K HD display, optional video splitter to merge non-critical views; allows overview + detail simultaneously, supports top + side view

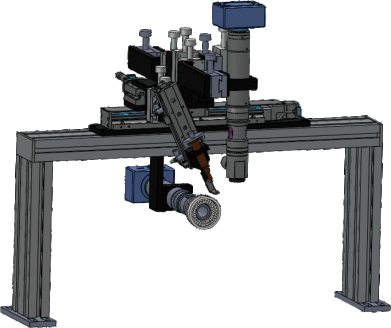

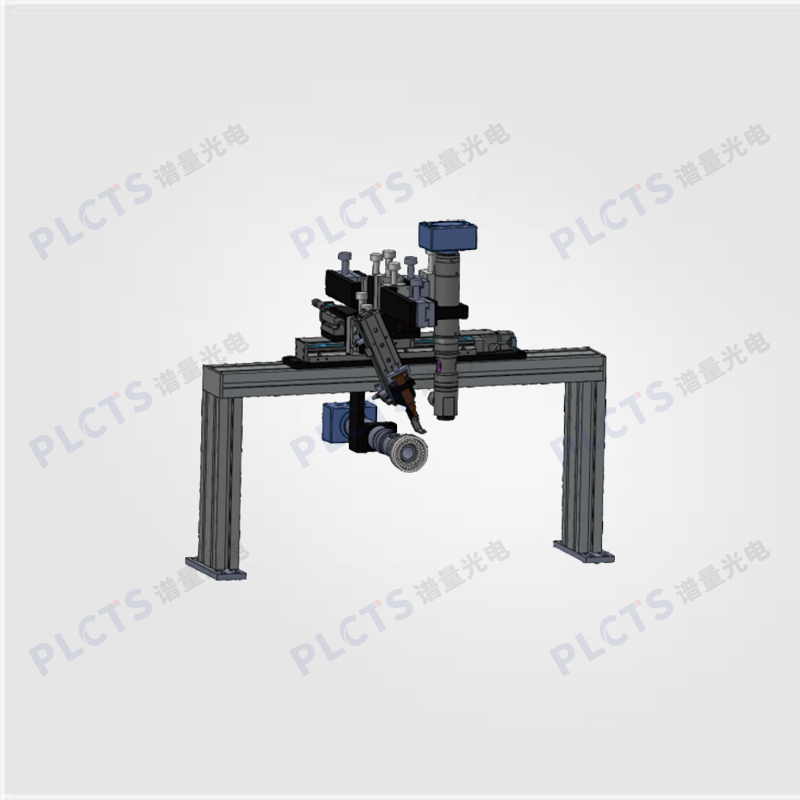

Motorized Gantry System

Motorized Gantry System

Key Features:
  • Motorized long-travel 150 mm sliding rail, ready for automated dispensing & UV integration
  • 8MP HDMI camera, C-mount, with crosshair & ring light, supporting measurement, photo, video, and drawing
  • Vertical lens magnification: 0.7–4.5×, side lens: 0.35–2.25×; Max electronic magnification: 340×, 1:7 zoom
  • 4K HD multi-display, supports video splitting to merge non-critical views; allows full overview + detail simultaneously, top + side view (front & rear). Integrated with UV adjustment module and motorized + pneumatic dispensing structures.
